概览
RClamp®2594N is specifically designed to provide secondary surge and ESD protection on high-speed ports. RClamp2594N integrates low apacitance, surgerated steering diodes with a high power transient voltage suppressor (TVS). The TVS utilizes snap-back or “crow-bar” technology to minimize device clamping voltage and features high surge current capability of 35A (tp=8/20us). ESD characteristics are highlighted by high ESD withstand voltage (+/-30kV per IEC 61000-4-2) and extremely low dynamic resistance (0.05 Ohms typical). Each device will protect four lines operating at 5 volts.
封装

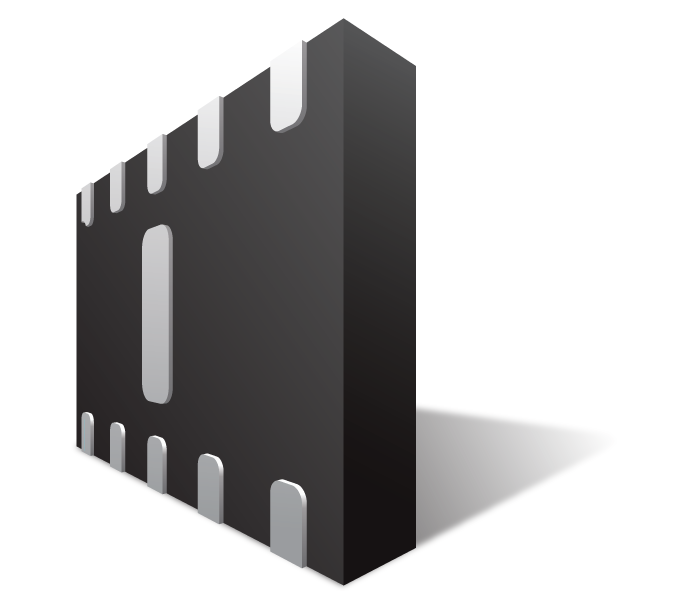

- SLF3020P10T Package
- 无铅、无卤素、符合 RoHS/WEEE 标准
- Nominal Dimensions: 3.0 x 2.0 x 0.40 mm
- Packaging: Tape and Reel
订购代码
- RClamp2594N.TCT: 3000 pcs. Tape & Reel
PB Free/ROHS
Learn More →功能
- Transient protection for high speed data lines to
- IEC 61000-4-2 (ESD) 30kV（空气），30kV（接触）
- IEC 61000-4-4 (EFT) 4 kV (5/50ns)
- IEC 61000-4-5 (Lightning) 35A (8/20μs)
- 占用较小 PCB 空间
- 保护四条高速数据线路
- 工作电压：5V
- 低电容：最大 3pF
- Dynamic Resistance: 0.05 Ohms (Typ)
- Solid-State Silicon-Avalanche Technology
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP2594N Datasheet | 2018-12-15 | | |
应用
- 千兆位以太网
- 2.5GbE
- 集成磁性元件/RJ-45 连接器
- Central office Equipment
- Industrial Equipment
- LVDS Interfaces
