概览

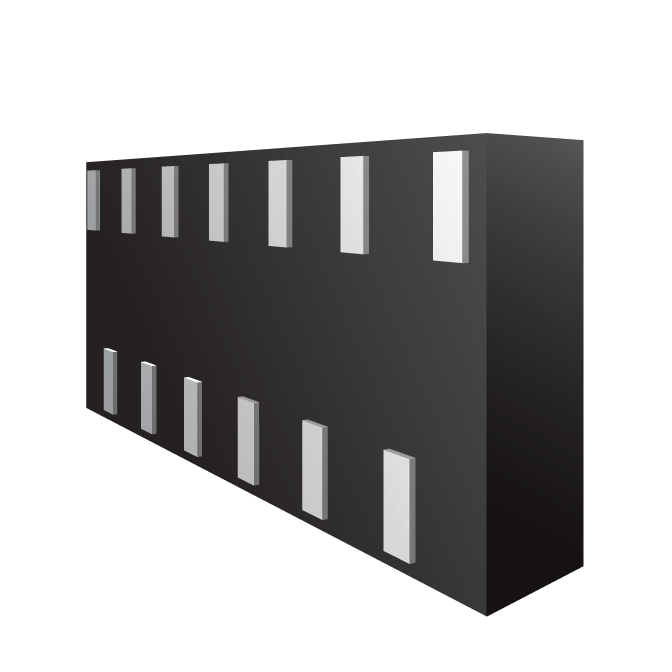

RClamp8512N TVS diode arrays are specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by electrostatic discharge (ESD), cable discharge events (CDE) and electrical fast transients (EFT).
功能
- Transient protection for high-speed data lines to:
- IEC 61000-4-2 (ESD) ±25kV (air), ±18kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 15A (8/20μs)
- Array of surge rated diodes with internal TVS diode
- Flow-through routing
- Small package saves board space
- Protects up to twelve I/O lines
- Low capacitance (<5pF) for high speed interfaces
- Low leakage current and clamping voltage
- Extremely low dynamic resistance: 0.20 Ohms (Typ)
- Low operating voltage: 2.5V
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP8512N | 2023-03-15 | | |
应用
- TCONN chip Protection
- 2-Layer PCB
- LVDS Interfaces
- 液晶电视
