概览

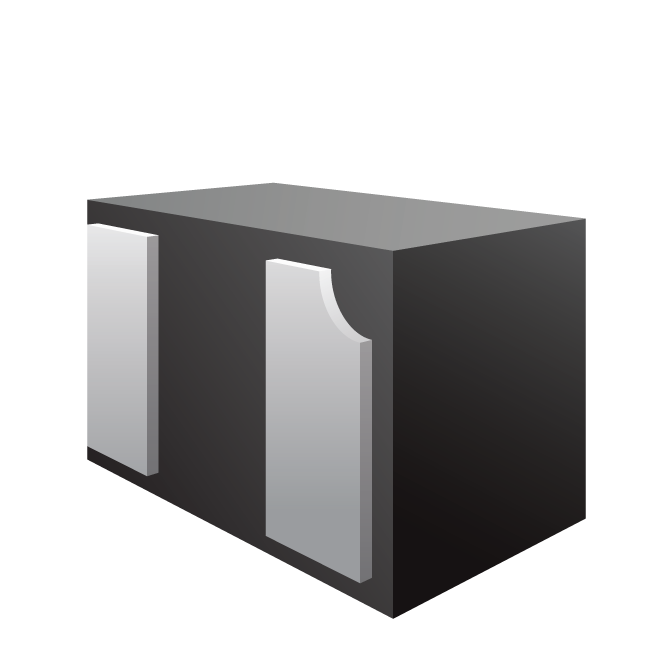

RClamp®02581P features extremely good electrostatic discharge (ESD) protection characteristics highlighted by low peak ESD clamping voltage and high ESD withstand voltage (+/-15kV contact per IEC 61000-4-2). RClamp02581P has a typical capacitance of 0.28pF allowing it to be used on USB Type-C high speed lines. These devices may also be used for EOS protection due to their high peak pulse current capability (8A, tp = 8/20μs). Each device will protect one high speed data line operating up to 2.8V.
功能
- ESD and EOS Protection
- ESD withstand voltage IEC 61000-4-2 (ESD) ±15kV (contact), ±20kV (air)
- Ultra-Low capacitance: 0.28pF Typical
- Very small PCB area
- 保护一条高速数据线路
- Working voltage: 2.8V
- Low reverse leakage current: 50nA max at VR=2.8V
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP02581P Datasheet | 2024-04-20 | | |
应用
- USB Type-C
- LVDS
- 键盘
- POS terminals
- SerDes
- GSML2
- 1G/2.5G ethernet
