概览

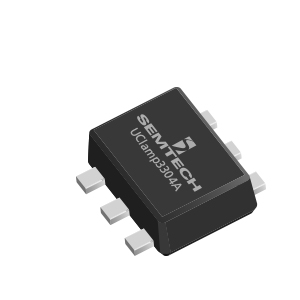

The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium. Each device requires less than 2.9mm² of PCB area and will protect up to four lines. They are unidirectional devices and may be used on lines with positive signal polarities.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)

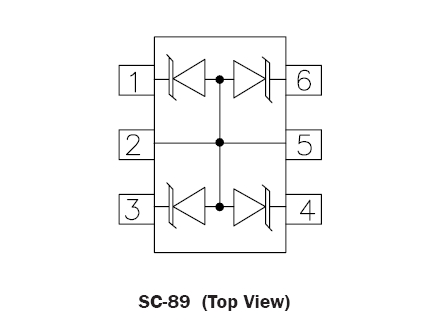

- Protects four unidirectional I/O lines

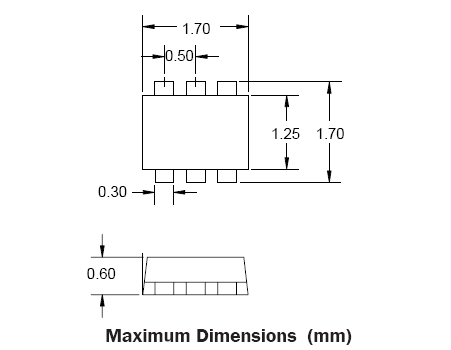

- Ultra-small SC-89 package (1.7 x 1.7 x 0.6mm) requires less than 2.9mm2 of PCB area
- 工作电压：3.3V
- 小漏电流
- Low operating and clamping voltages
- 固态硅雪崩技术
- Lead finish is lead-free matte tin
| 文档 | Release Date | Type |  |
|---|---|---|---|
| UCLAMP3304A Datasheet | 2018-12-15 | | |
应用
- Cellular Handsets and Accessories
- Cordless Phones
- Notebooks and Handhelds
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
