概览
μClamp TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD. They are designed to replace 0201 size multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics. They feature large cross-sectional area junctions for conducting high transient currents. This device offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.

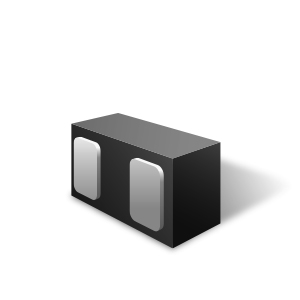

封装
- SLP0603P2X3F package - 0.6 x 0.3 x 0.25 mm tape & reel
订购代码
- μClamp3321ZATFT - Pb-Free, Halogen Free, RoHS/WEEE Compliant, 15,000 pcs.
PB Free/ROHS
Learn More →功能
- High ESD withstand Voltage: +/-15kV (Contact) and +/- 17kV (Air) per IEC 61000-4-2
- Ultra-small package
- Protects one data line
- 低 ESD 钳位电压
- 工作电压：3.3V
- Low capacitance: 5pF maximum
- 小漏电流
- Extremely low dynamic resistance: 0.33 Ohms (Typ)
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| UCLAMP3321ZA Datasheet | 2018-12-15 | | |
应用
- 蜂窝手机和配件
- Notebook Computers
- Tablet PC
- 便携式仪表
- 外围设备
