概览

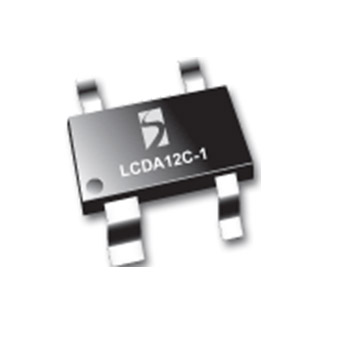

The LCDAxxC-1 is a low capacitance transient voltage suppressor (TVS) diode array. It is designed to protect sensitive CMOS ICs from the damaging effects of ESD and lightning.
功能
- 12 V operating voltage
- Protects one line pair
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 0.5 kV, 12 A (8/20 µs)
- 优化配置，可方便电路板布局
- Low capacitance (< 15 pF) for high-speed interfaces
- 钳位电压低
- 小漏电流
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| LCDA12C-1 Datasheet | 2019-11-06 | | |
| TVS Peak Pulse Power vs. Pulse Duration | 2024-08-12 | | |
应用
- ADSL interfaces
- RS-232, RS-422, V.90 interfaces
- Multi-protocol serial transceivers
- 高速数据线
- Portable electronics
- WAN/LAN equipment
- Wireless systems
