概览

The LCDA15C-6 has been specifically designed to protect sensitive components which are connected to data and transmission lines from over voltages caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.

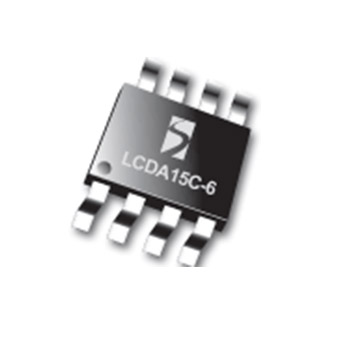

封装

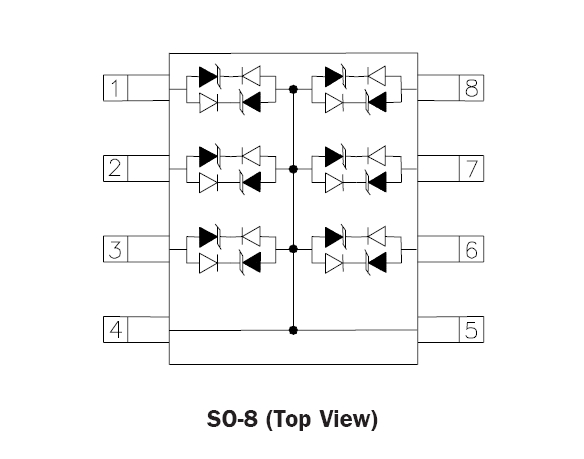

  • SO-8
  • Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel

订购代码

  • LCDA15C-6.TBT

PB Free/ROHS

Learn More →

功能

  • 15 V operating voltage
  • Protects six I/O lines
  • Transient protection for high-speed data lines to
    • IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
    • IEC 61000-4-4 (EFT) 40 A (5/50 ns)
    • IEC 61000-4-5 (Lightning) 0.5 kV, 12 A (8/20 µs)
  • Low capacitance for high-speed interfaces
  • High surge capability
  • 钳位电压低
  • 固态硅雪崩技术

应用

  • Multi-mode transceiver protection
  • WAN equipment:
    • CSU/DSU
    • Multiplexers
    • 路由器
    • ISP equipment
    • Customer premise equipment
  • Protection for any of the following interfaces:
    • RS-232 (V.28)
    • RS-422 (V.11, X.21)
    • RS-449 (V.11/V.10)
    • RS-485
