概览

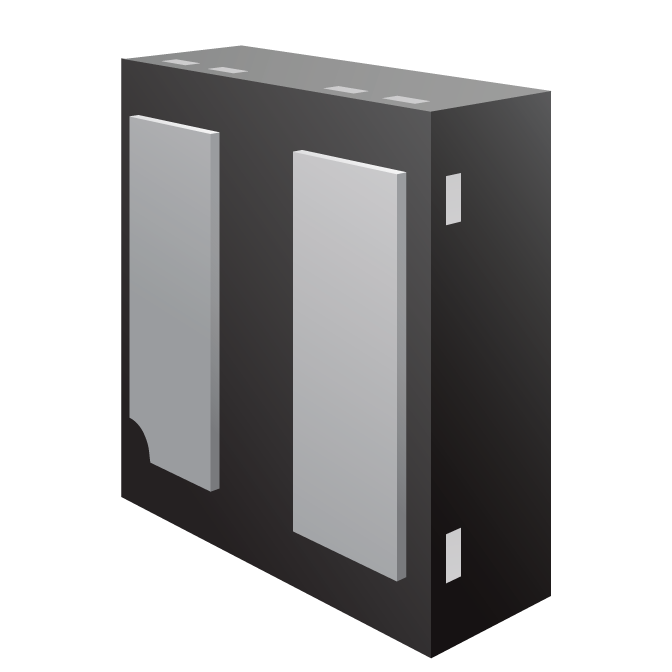

TDS3621LP Transient Diverting Suppressors(TDS) are designed to provide high energy EOS protection with superior clamping and temperature characteristics when compared to standard TVS devices. The device uses a surge rated FET as the main protection element. TDS3621LP is designed to protect voltage bus or data lines with an operating voltage of 36V. It is rated for a high-energy transient current up to 24A (tp = 8/20μs) and may be used to meet the common industrial voltage surge standard of ±1kV per IEC 61000-4-5 (RS = 42Ω, CS= 0.5μF). The FET in turn switches on and conducts transient current to ground. The TDS clamping voltage is nearly constant across the rated peak pulse current range due to the extremely low ON Resistance of the FET. Lower clamping voltage at maximum peak pulse current makes them more suitable for protecting today’s sensitive IC’s, when compared to standard TVS diodes.
功能
- High ESD withstand Voltage: ±30kV (Contact) & ±30kV (Air) per IEC 61000-4-2
- High peak pulse current capability: 24A (tp = 8/20μs), 1kV (tp = 1.2/50μs, RS = 42Ω ) per IEC 61000-4-5
- 保护一条 I/O 或电源线路
- Working voltage 36V
- Solid-state technology
| 文档 | Release Date | Type |  |
|---|---|---|---|
| TDS3621LP Datasheet | 2024-12-14 | | |
应用
- Telecom
- 工业
- 10/100/1000 Ethernet
- DOCSIS modems
- USB 2.0
