概览
The TClamp®1272S provides dedicated line driver side surge and ESD protection for ADSL and VDSL applications.
It is designed to replace multiple discrete components in portable applications.
封装

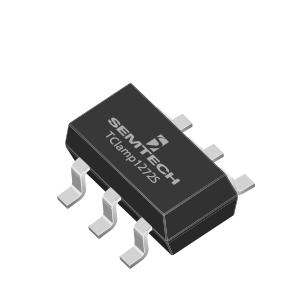

- JEDEC SOT-23 6L
订购代码
- TClamp1272S.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
PB Free/ROHS
Learn More →功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) 30kV（空气），30kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 25A (8/20μs)
- Array of surge rated diodes with internal TVS Diode
- Bias diodes prevent charging and discharging of TVS capacitance
- Low capacitance: (<5pF)
- Operating voltage: 12V
- 小漏电流
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| TCLAMP1272S Datasheet | 2018-12-15 | | |
应用
- Line Driver Side protection of ADSL and VDSL interfaces
- Modems and Gateways
- Access Equipment
- 局端设备
- Customer Premise Equipment
