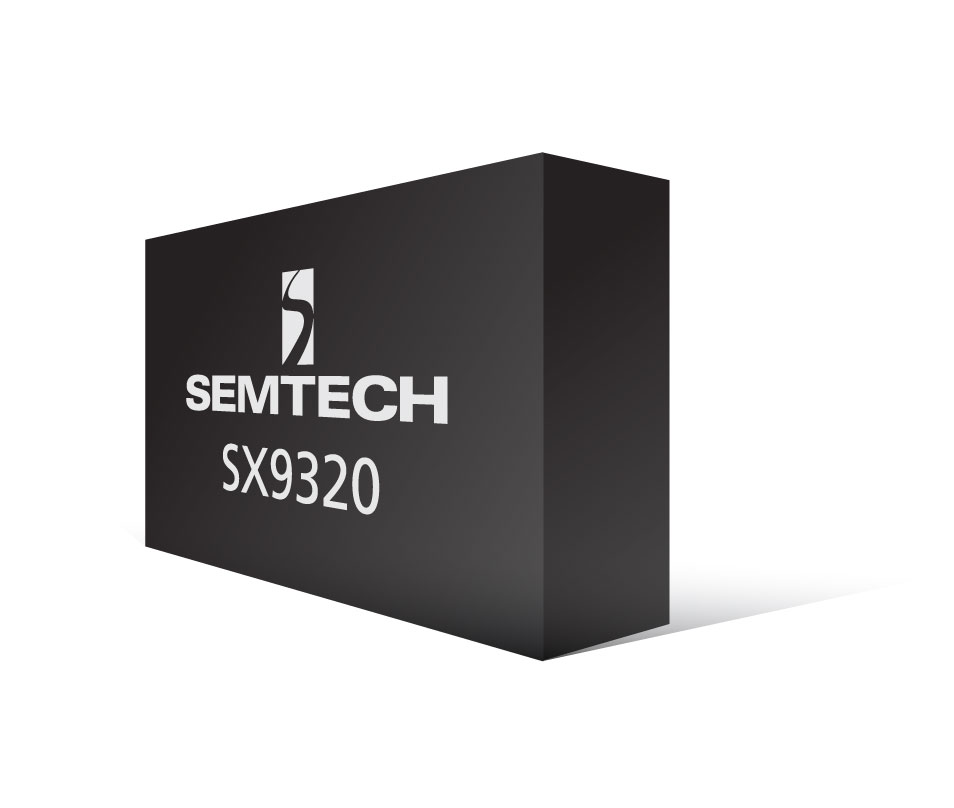

SX9320

SX9320 is a member of the Semtech PerSe Connect product line which enhances the connectivity for wireless devices. It offers 2-Channel to support accurate human sensing in mobile devices for radio frequency (RF) performance improvement and Specific Absorption Rate (SAR) compliance. Its tiny footprint and ultra-low power consumption make it a good solution for smartphones, tablets and laptops.

Pb(Lead)-Free/RoHS-Green Info

全部展开

Base Part Number (1)
SX9320
Lead Free Part Number (1A), (13)
SX9320ICSTRT
产品描述
ULTRA LOW POWER, SMART PROXIMITY SENSOR FOR SAR
引脚数
8
封装类型
WLCSP-8
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
SnAgCu
MSL 等级
1
REACH SVH C(233) EC1907/2006 (18)
是下载报告
JIG 101 A & B (12)
是
RoHS / RoHS 2 2011/65/EC (4) (5)
是下载报告
RoHS 2/3 Amend 2015/863 (7)
是下载报告
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
Halogen Free / Low IEC 61249-2-21/JS709C (20)
是下载报告
Proposition 65 (21)
是下载报告
Packaging Material 94/62/EC (17)
是下载报告
RoHS Compliant by Exception (8)
否
Green Reportable Substance (9) Antimony (Sb)/ Berylliuum (Be)
Phosphorus (P) & (Red P)
Compliant (ND4) or below threshold PPM (7)
ND4
声明和报告
IPC-1752-2
下载报告
