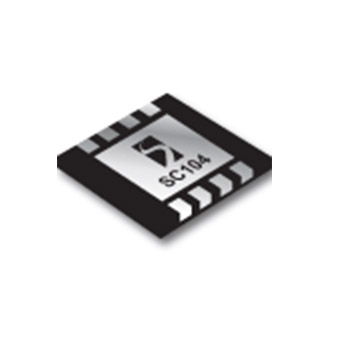

SC104
Product is not recommended for new design.
功能
- Adjustable output current using pulse-width modulation or analog voltage input
- 38 V output capability supports up to 10 white LEDs
- Wide range of input voltages: 1.55 V to 10 V
- Low quiescent current
- 0.5 µA standby current in shutdown
- Programmable cycle-by-cycle current limit
- Surface mount packaging (3 x 3 mm 8-pin MLP)
- Output voltage and over-temperature protection
- White LED supplies
- Color LED supplies
- Cellular phones
- PDAs
- Electronic books
- Handheld computers
- Wireless web appliances
应用
封装
- MLP-8
订购代码
- SC104IMLTR: Package Minimum Tape & Reel Only
- SC104IMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC104
产品描述
MICRO POWER CONSTANT-CURRENT DC-DC CONVERTER
引脚数
8
封装类型
MLPD
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
