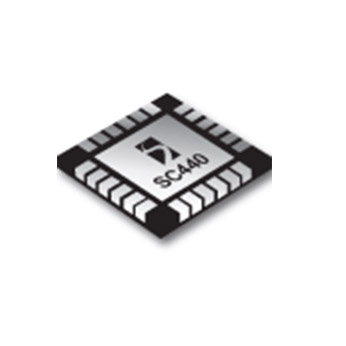

SC440
Product inactive. Information on this page is for reference only.
功能
- Wide input range 4.5V to 21V
- 40V maximum output voltage with adjustable OVP for smaller output capacitor
- Drives up to 60 WLEDs in 6 strings
- Programmable WLED current for up to 30mA per string
- 1% string-to-string current matching
- 2A integrated power switch
- Up to 91% efficiency
- 4mm x 4mm x1mm MLPQ-24 package (WEEE & RoHS compliant)
- Medium-sized LCD panel
- Notebook Display
- White LED Power Supplies
- Sub-Notebook and Tablet Computer Displays
- Portable Media Players
- LCD Monitors
- Digital Video Cameras
应用
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC440
产品描述
HIGH EFFICIENCY INTEGRATED DRIVER FOR 6-STRINGS OF 30MA LEDS
引脚数
24
封装类型
MLPQ
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
