SC4509
Product inactive. Information on this page is for reference only.
功能
- VIN range: 2.7V — 10V
- Integrated Schottky diode
- 81% efficiency
- Requires only 4 external components
- Up to 20V of output voltage
- 30mA maximum LED current
- Open LED protection (OVP)
- 1.2MHz PWM switching frequency
- Low feedback voltage (20OmV typical)
- Wide range of PWM dimming
- Drives up to 5 LEDs
- 500mA switch current limit
- 220nF output capacitor
- Available in 2mm x 2mm x 0.75mm MLPD-W8 and SOT23-6 packages
- Packages are fully WEEE and RoHS compliant
- Digital Video Cameras
- White LED Backlight Driver
- OLED Display Driver
- Portable Media Players
- GPS Receivers
- Cellular Phones
- PDAs and Handheld Computers
应用
封装

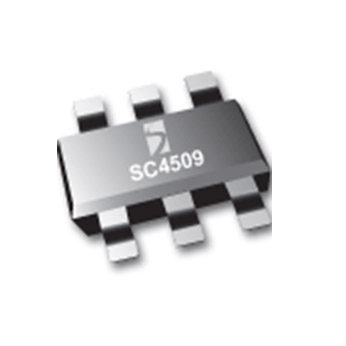

- SOT-23-6, MLPD-W8
订购代码
- SC4509SKTRT: Lead-Free, RoHS and WEEE Compliant, 3000 pcs.Tape & Reel
- SC4509WLTRT: Lead-Free, RoHS and WEEE Compliant, 3000 pcs.Tape & Reel
- SC4509EVB: SC4509 Evaluation Board
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4509
产品描述
HIGHLY INTEGRATED STEP-UP CONVERTER FOR WHITE LED APPLICATIONS IN MLPD-W8-2X2
引脚数
8
封装类型
MLPD-W
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
