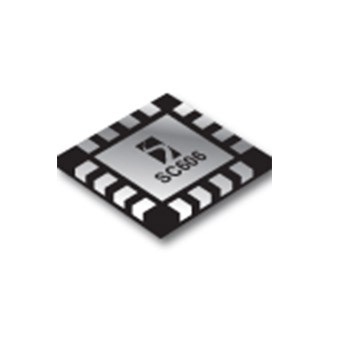

SC606
Product inactive. Information on this page is for reference only.
The SC606 is a very high efficiency charge pump white/color LED driver from the mAhXLife™ family of products. It is optimized for Li-Ion battery applications. The LED current is regulated to a value configured by the user through an I2C compatible serial interface.
功能
- Very high efficiency over 90% of battery life
- Current regulation for 6 LEDs
- Current matching tolerance of ± 3.5% from LED to LED
- Current is accurate to ± 6.5% of the specified value
- Wide current range per LED [0.5mA - 32mA]
- High available total LED current = 6*ILED = 120 mA
- I2C bus limited compatibility
- Low shutdown current: 0.1 µA typical
- Soft start / inrush current limiting
- Short-circuit / thermal protection
- 1.33 MHz and 250 kHz programmable fixed frequency
- Separate brightness zones for multiple displays
- Three charge pump modes of operation: 1x, 1.5x and 2x
- Open LED output protection
- MLP-16 [4x4] package
- Cellular phones
- LED backlighting
- PDA power supplies
- Portable electronics
- Electronic books
- Handheld computers
- Wireless web appliances
应用
封装
- MLPQ-16 (4X4 mm)
订购代码
- SC606AIMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC606
产品描述
LOW NOISE SMART LED DRIVER WITH SERIAL INTERFACE
引脚数
16
封装类型
MLP
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
