SC613
Product inactive. Information on this page is for reference only.
The SC613 is a versatile charge pump designed for use in battery operated power supply applications. The wide input range is matched for Li-Ion battery applications. Only two 1uF ceramic bucket capacitors are required, and the inductorless implementation provides a reduced-EMI solution.
功能

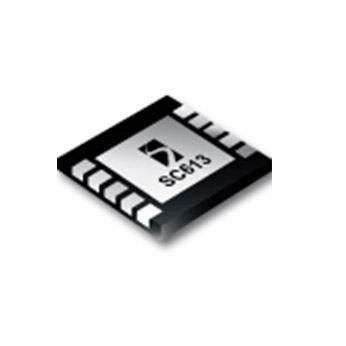

- Small size – MLP micro 10-lead 3 x 3 mm package
- Selectable 5.0 V or 4.5 V output voltage
- 140 mA available with 4.5 V output
- 100 mA available with 5.0 V output
- Short-circuit protection
- Soft start function
- Shutdown current < 2 µA
- Selectable fixed frequencies of 262 kHz and 650 kHz
- Low ripple
- Regulated to ± 5%
- Ease of use
- Cellular phones
- LED photo flash for cellular phones
- LED backlighting
- PDA power supplies
- Portable electronics
- Electronic books
- Wireless web appliances
应用
封装
- MLPD-10 (3x3x1mm)
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC613
产品描述
LOW NOISE REGULATED CHARGE PUMP WITH SELECTABLE OUTPUT
引脚数
10
封装类型
MLPD
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
