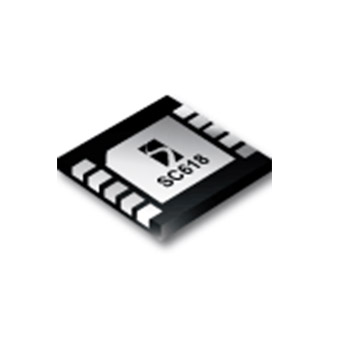

SC618
Product inactive. Information on this page is for reference only.
功能
- Ultra-thin Package MLPD-UT-10 - only 0.6mm high (3mm x 3mm x 0.6mm)
- Two selectable modes - Flash and Spotlight
- Up to 700mA output - Flash Mode
- 500mA max output - Flash Mode (over rated voltage, temperature, and load conditions)
- 1 second safety timer shut-off - Flash Mode
- Spotlight Mode set to 40% of fl ash current
- Up to 280mA output - Spotlight Mode
- 1x mode in Spotlight Mode under most conditions for best efficiency (2x mode only when needed)
- 3.0V to 5.25V Input Range
- External fl ash control pin for synchronization to a camera module or graphics controller
- Short-circuit, over-voltage, and over-temperature protection
- Soft-start functionality
- Separate Flash and Spotlight control inputs for maximum versatility
- Mobile Camera Phones
- 数码相机
- PDAs with Built-in Cameras
应用
封装
- MLPD-10 (3X3 mm)
订购代码
- SC618ULTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
