概览

封装

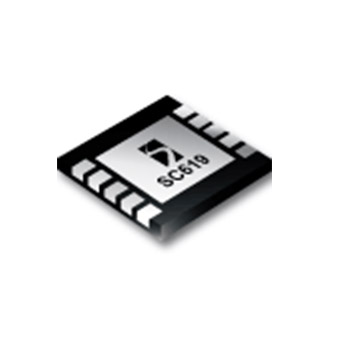

  • MLPD-UT-10 (3X3 mm)

订购代码

  • SC619ULTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel

PB Free/ROHS

Learn More →

功能

  • Flash and spotlight — two selectable modes
  • Flash mode — up to 700mA output
  • Flash mode — 500mA max output (over rated voltage, temperature, and load conditions)
  • Flash mode safety timer shut-off — 1 second
  • Spotlight mode set to 20% of flash current
  • Spotlight mode — up to 140mA output
  • Spotlight mode —1x mode (under most conditions) for best efficiency
  • Input range — 3.0V to 5.25V
  • External fl ash control pin for synchronization to a camera module or graphics controller
  • Short-circuit, over-voltage, and over-temperature protection
  • Soft-start functionality
  • Separate flash and spotlight control inputs for maximum versatility
  • Ultra-thin package MLPD-UT-10 — 3mm x 3mm x 0.6mm

应用

  • Mobile camera phones
  • Digital cameras
  • PDAs with built-in cameras
