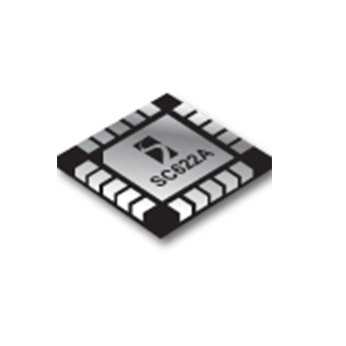

SC622A
Product inactive. Information on this page is for reference only.
The SC622A is a high efficiency charge pump LED driver using Semtech’s proprietary mAhXLife™ technology. Performance is optimized for use in single-cell Li-ion battery applications.
功能
- Input supply voltage range — 3.0V to 5.5V
- Charge pump modes — 1x, 1.5x and 2x
- Flash LED — 400mA max in flash mode, 250mA max continuous for spotlight
- Two user-configurable 100mA low-noise LDO regulators
- Charge pump frequency — 250kHz
- I2C compatible interface — up to 400kHz
- External flash control pin to sync with camera
- Optional 1s flash time out
- Automatic sleep mode (flash off ) — IQ = 100μA
- Low shutdown current — 0.1μA (typical)
- Ultra-thin package — 3mm x 3mm x 0.6mm
- Fully WEEE and RoHS compliant
- Cellular phone flash
- PDA flash
- Camera I/O and core power
应用
封装
- MLPQ-UT-20 (3 X 3 mm)
订购代码
- SC622AULTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
