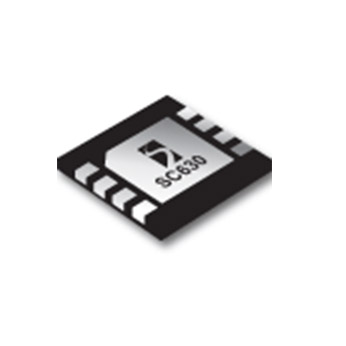

SC630
Product is not recommended for new design.
The SC630 is a high-current voltage regulator using Semtech’s proprietary low-noise charge pump technology.
功能
- Input voltage range — 2.9V to 5.5
- VOUT tolerance 3.3V ±3%
- VOUT regulation (line + load) ±2%
- Continuous output current — 400mA
- Peak output current — 500mA
- Three charge pump modes — 1x, 1.5x and 2x
- Output ripple ≤ 20mVpp for IOUT ≤ 400mA
- Short circuit, over-voltage, and over-temperature protection
- Soft-start functionality
- Shutdown current — 0.1μA, typical
- Ultra thin package — 2 x 2 x 0.6 (mm)
- Fully WEEE and RoHS compliant
- Mobile phone
- MP3 players
- Multi-LED backlit LCDs
- Compact fl ash/CF+ products
- PMPs
- Digital video cameras
- Digital still cameras
- PDAs
应用
封装
- MLPD-UT-8 (2x2x0.6mm)
订购代码
- SC630ULTRT: Lead-free package, fully WEEE and RoHS compliant, tape and reel only.
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC630
产品描述
1MHZ FIXED 3.3V OUTPUT CHARGE PUMP REGULATOR
引脚数
8
封装类型
MLPD-UT-8
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
