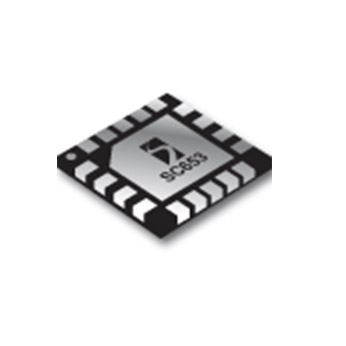

SC653
Product inactive. Information on this page is for reference only.
The SC653 is a highly integrated light management unit that provides two low-noise LDOs, a multi-mode high efficiency charge pump, and four programmable LED drivers. Performance is optimized for use in single-cell Liion battery applications.
功能
- Input supply voltage range — 2.9V to 5.5V
- Four programmable current sinks with 29 steps from
0mA to 25mA - Very high effi ciency charge pump driver system with
three modes — 1x, 1.5x and 2x - One programmable 100mA low-noise LDO regulator
- One programmable 150mA low-noise LDO regulator
- Charge pump frequency — 250kHz
- SemPulse® single wire interface
- Backlight current accuracy — ±1.5% typical
- Backlight current matching — ±0.5% typical
- Fade-in/fade-out feature for main backlight
- Automatic sleep mode (LEDs off ) — IQ = 100μA
- Shutdown current — 0.1μA (typical)
- Ultra-thin package — 2.3 x 2.3 x 0.6 (mm)
- Fully WEEE and RoHS compliant
- Cellular phones, smart phones, and PDAs
- LCD modules
- Portable media players
- Digital cameras and GPS units
- Display backlighting and LED indicators
应用
封装
- MLPQ-UT-18
订购代码
- SC653ULTRT: Lead-Free, WEEE and RoHS compliant, 3000 pcs, Tape and Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC653
产品描述
LIGHT MANAGEMENT UNIT WITH 2 LDOS AND SEMPULSE INTERFACE
引脚数
18
封装类型
MLPQ-UT
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
镍钯金
MSL 等级
2
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
