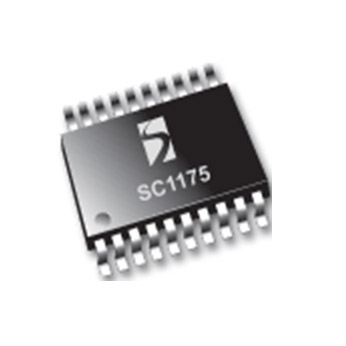

SC1175
Product is not recommended for new design.
The SC1175 is a versatile 2 phase, synchronous, voltage mode PWM controller that may be used in two distinct ways. First, the SC1175 is ideal for applications where point of use output power exceeds any single input power budget. Alternatively, the SC1175 can be used as a dual switcher.
功能
- 300 kHz fixed frequency operation
- Soft start and enable function
- Power-good output provided
- Over-current protection with 50% fold-back
- Phase-shifted switchers minimize ripple
- High-efficiency operation, >90%
- Programmable output(s) as low as 1.25 V
- Industrial temperature range
- 20-pin SOIC or TSSOP package
- Two-Phase, Current-Sharing Controller
- Flexible, same or separate VINProgrammable current sharing
- Combined current limit with fold-back
- 2 phases operating opposed for ripple reduction
- Thermal distribution via multi-phase output
- Two Independent PWM Controllers
- Flexible, same or separate VIN
- Independent control for each channel
- Independent and separate current limit
- 2 phases operating opposed for ripple reduction (if same IN used)
- Graphics cards
- DDR memory
- Peripheral add-in card
- SSTL termination
- Dual-phase power supply
- Power supplies requiring two outputs
应用
封装
- SOIC-20, TSSOP-20
订购代码
- SC1175CSWTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC1175TSTR: Package Minimum Tape & Reel Only
- SC1175TSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1175
产品描述
DUAL SYNCHRONOUS VOLTAGE MODE CONTROLLER WITH CURRENT SHARING CIRCUITRY
引脚数
20
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
