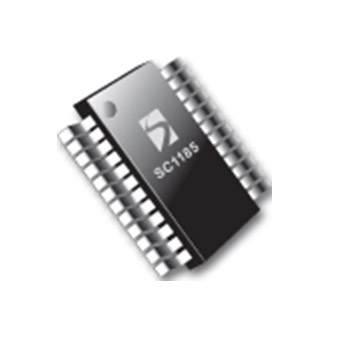

SC1185
Product inactive. Information on this page is for reference only.
The SC1185 combines a synchronous voltage mode controller with two low-dropout linear regulators providing most of the circuitry necessary to implement three DC/DC converters for powering advanced microprocessors such as Pentium® II .
功能
- Synchronous design, enables no-heatsink solution
- 95% efficiency (switching section)
- 5-bit DAC for output programmability
- On-chip power-good function
- Designed for Intel Pentium® II requirements
- 1.5 V, 2.5 V @ 1.25% for linear section
- 1.265 V ± 1.5% reference available
- 24-lead SO package. Lead free option available. Lead free product is fully WEEE and RoHS compliant.
- Pentium® II microprocessor supplies
- Flexible motherboards
- 1.3 V – 3.5 V microprocessor supplies
- Programmable triple power supplies
应用
封装
- SOIC-24
订购代码
- SC1185CSW.TR: 1,000 pcs. Tape & Reel
- SC1185CSW.TRT: Lead-Free, RoHS and WEEE Compliant, 1000 pcs. Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1185
产品描述
PROGRAMABLE SYNCHRONOUS DC/DC CONVERTER, DUAL LDO CONTROLLER
引脚数
24
封装类型
SOICWM-24
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
