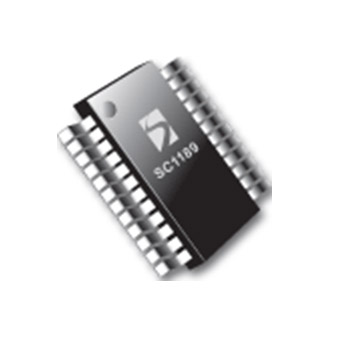

SC1189
Product is not recommended for new design.
The SC1189 combines a synchronous voltage mode controller with two low-dropout linear regulators providing most of the circuitry necessary to implement three DC/DC converters for powering advanced microprocessors such as Pentium®III.
功能
- Synchronous design, enables no heatsink solution
- 95% efficiency (switching section)
- 5-bit DAC for output programmability
- Designed for Intel Pentium® III requirements
- 1.25 V, 2.5 V short-circuit-protected linear controllers
- Linear controllers adjustable to 1.8 V chipset.
- VRM 8.5 Compliant
- VRM 8.4 Compliant (1.3 V to 1.8 V)
- 1.0% accuracy (1.6 V to 1.8 V)
- On-chip power-good signal
- Available in Lead free package, fully WEEE and RoHS compiant
- Pentium® III microprocessor supplies
- 1.050 V to 1.825 V microprocessor supplies
- Programmable triple power supplies
应用
封装
- SOIC-24
订购代码
- SC1189SWTR: Package Minimum Tape & Reel Only
- SC1189SWTRT: Lead-free, RoHS and WEEE compliant, 1000 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1189
产品描述
PROGRAMMABLE SYNCHRONOUS DC/DC CONVERTER, DUAL LDO CONTROLLER
引脚数
24
封装类型
SO-24
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
