概览

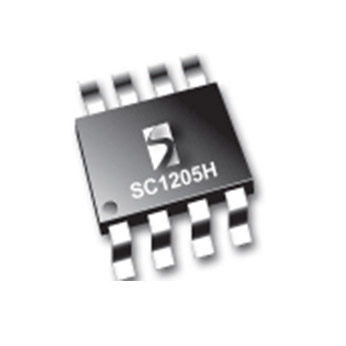

The SC1205H is a cost effective, High Drive Voltage, Dual MOSFET Driver designed for switching High and Low side Power MOSFETs. Each driver is capable of Ultra-fast rise/fall times as well as a 20ns max propagation delay from input transition to the gate of the power FETs.
功能
- Higher efficiency
- Fast rise and fall times (15 ns typical with 3000 pF load)
- Higher gate drive voltage (8 V) for optimum MOSFET RDS_ON at minimum switching loss
- Ultra-low (< 20 ns) propagation delay (BG going low)
- 5 Amp peak current
- Adaptive non-overlapping gate drives provide shoot-through protection
- Floating top drive switches up to 18 V
- Under-voltage lock-out
- Over-temperature shutdown
- Less than 10 µA supply current when EN is low
- Low cost
| 文档 | Release Date | Type |  |
|---|---|---|---|
| SC1205H Datasheet | 2018-12-20 | | |
应用
- Intel Pentium® power supplies
- AMD Athlon™ and AMD-K8™ power supplies
- High-efficiency portable and notebook computers
- Battery-powered applications
- High-frequency (to 1.0 MHz) operation allows use of small inductors and low-cost caps in place of electrolytics
