SC187
The SC187 is a 4A synchronous step-down regulator designed to operate with an input voltage range of 2.9V to 5.5V. The device offers fifteen pre-determined output voltages via four control pins programmable from 0.8 to 3.3 Volts. The control pins allow for on-the-fly voltage changes, enabling system designers to implement dynamic power savings. The device is also capable of adjusting output voltage via an external resistor divider.
功能
- Input voltage range — 2.9V to 5.5V
- Output voltage range- 0.8V to 3.3V
- Output current — up to 4A
- Ultra-small footprint — <1mm height solution
- Minimum 1.8MHz switching frequency with no AM radio band interference
- Efficiency up to 95%
- Low output noise across load range
- Excellent transient response
- Start up into pre-bias output
- Duty-cycle low dropout operation — 100%
- Shutdown current — <1μA
- Externally programmable soft start time
- Power good indicator
- Input under-voltage lockout
- Output over-Voltage, Current limit protection
- Over-temperature protection
- Thermally enhanced 3 x 3 x 0.6 (mm)
- MLPQ-UT16 package
- Temperature range — -40 to +85°C
- Lead-free, Halogen free, and RoHS/WEEE compliant
- Automotive power supplies
- Routers and network cards
- 液晶电视
- Office automation
应用

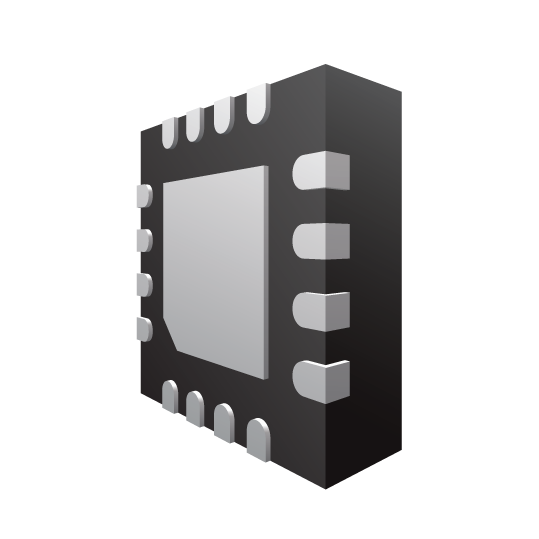

封装
- MLPQ-UT16 package 3 x 3 x 0.6mm
订购代码
- SC187ULTRT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC187U
产品描述
4A, 2.2MHZ SYNCHRONOUS STEP-DOWN REGULATOR WITH 15 PRESET OUTPUT VOLTAGES
引脚数
16
封装类型
MLPQ-UT
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
