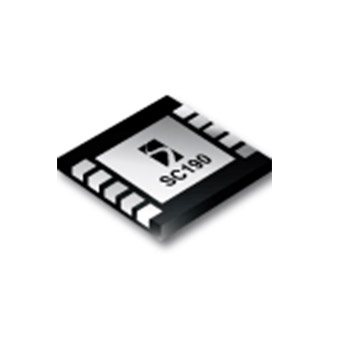

SC190
Product inactive. Information on this page is for reference only.
The SC190 is a synchronous step-down converter with integrated power devices and an integrated front-end LDO to minimize input supply ripple. Output voltage is programmable using two control bits, eliminating the need for feedback resistors tied to the output. The device is offered in four distinct variants with each variant providing four fixed output voltage options to choose from.
功能
- Less than 1mV Supply Ripple
- Output Voltage Regulated by Either the Switching Regulator or Linear Regulator
- Dynamic Handover Between Linear and Switching Regulator for Maximum Efficiency
- 2.7V to 5.5V Input Range
- 300mA Guaranteed Output Current
- 10µA quiescent current at light loads
- Fixed Frequency 1MHz Operation or 750kHz to 1.5MHz Clocked Operation
- No Schottky Diode Required
- Up to 95% Efficiency (VIN=BP)
- Over-current Protection
- Over-voltage Protection
- Over-temperature Protection
- Soft Start
- Low Output Noise < 100µVrms
- MLP-10, 3 x 3mm Lead-frame, Lead-free Package
- Cell Phones
- Cordless Phones
- Notebook and Subnotebook Computers
- PDAs and Mobile Communicators
- WLAN Peripherals
- 1 Li-Ion or 3 NiMH/NiCd Powered Devices
应用
封装
- MLP-10
订购代码
- SC190AIMLTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
- SC190BIMLTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
- SC190CIMLTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
- SC190DIMLTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC190
产品描述
SYNCHRONOUS BUCK CONVERTER WITH PROGRAMMABLE OUPUT
引脚数
10
封装类型
MLPD
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
