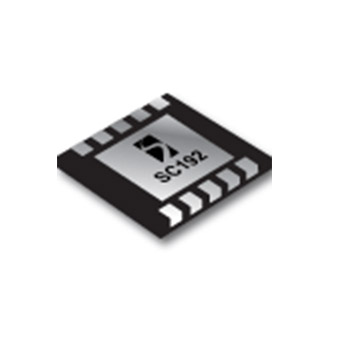

SC192
Product is not recommended for new design.
The SC192 is a synchronous step-down converter with integrated power devices designed for battery operated systems. The internal power switches reduce system size and cost. In addition, an efficiency of 95% can be achieved for significant line and load ranges.
功能
- 2.7 V to 7 V Input Range
- Output adjustable from 0.75 V to Vin
- Fixed frequency or PSAVE for maximum efficiency over wide load current range
- 700 mA guaranteed output current
- No Schottky diode required
- 35 µA quiescent current
- 100% duty cycle in dropout
- 95% efficiency
- Fast transient response
- Over-temperature protection
- Space-saving micro lead-frame package MLPD-10 3x3
- Cell phones
- Cordless phones
- Notebook and subnotebook computers
- PDAs and mobile communicators
- Devices powered by 1 Li-ion cell or 3 NiMH/NiCd cells
应用
封装
- MLP-10
订购代码
- SC192IMLTR: Package Minimum Tape & Reel Only
- SC192IMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC192
产品描述
SYNCHRONOUS BUCK CONVERTER WITH INTEGRATED POWER DEVICES
引脚数
10
封装类型
MLPD
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
Please consult with your Semtech Sales Rep
