SC196
Product is not recommended for new design.

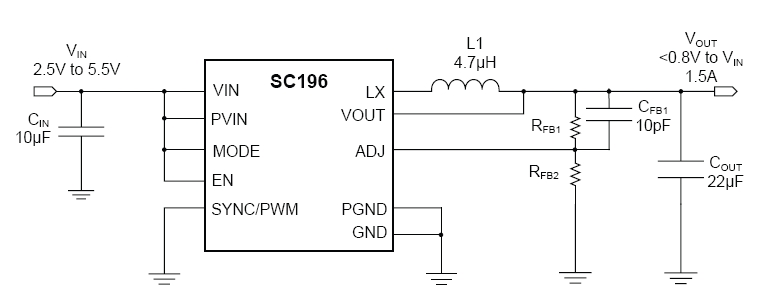

The SC196 is a synchronous step-down converter with integrated power devices designed for use in applications using a single-cell Li-ion battery. Its wide input voltage range also makes it suitable for use in systems with fixed 3.3V or 5V supply rails available.
功能
- Up to 95% efficiency
- V(OUT) adjustable from less than 0.8V to V(IN)
- Output current — 1.5A
- Quiescent current — 17μA
- Input range — 2.5V to 5.5V
- Fixed 1MHz frequency or 750kHz to 1.25MHz synchronized operation
- PSAVE operation to maximize efficiency at light loads
- Fast transient response
- 100% duty cycle in dropout
- Soft-start
- Over-temperature and short-circuit protection
- Lead-free package — MLP10-UT, 3 x 3 x 0.6mm
- Cell phones
- Wireless communication chipset power
- Personal media player
- Microprocessor/DSP core/IO power
- PDAs and handheld computers
- WLAN peripherals
- USB powered modems
- 1 Li-Ion or 3 NiMH/NiCd powered devices
应用
封装

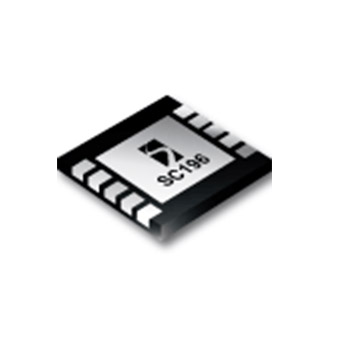

- MLPD-10
订购代码
- SC196ULTRT: Lead-Free, RoHS and WEEE Compliant, 3000 pcs.Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC196
产品描述
1.5A SYNCHRONOUS BUCK CONVERTER WITH INTEGRATED POWER DEVICES
引脚数
10
封装类型
MLPD
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
