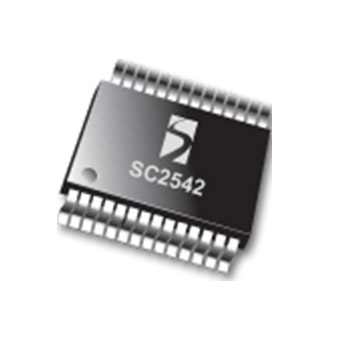

SC2542
Product inactive. Information on this page is for reference only.
SC2542 is a high performance dual PWM controller. It is designed to convert a widely ranged battery rail down to two independent output rails. The PWM operation of the two channels are 180 degrees out of phase which can greatly reduce the size and the cost of the input capacitors.
功能
- Independent dual-switcher-outputs
- Integrated 5V standby output with over 50mA capability
- Wide input voltage range: 6.5V ~ 28V
- Adjustable output voltage down to 0.75V
- Light load efficiency enhancement
- Programmable skip mode operation
- Flexible power sequencing with enable and power good output
- Synchronous buck topology with voltage mode control
- Out of phase operation to reduce cost of input capacitor
- 10V internal regulator for gate driver to deliver high efficiency
- Programmable switching frequency: 100KHz ~ 300KHz
- Full protection: UVLO, OVP, and programmable OCP
- No need for current sense resistor
- Low standby operating current (200μA typical)
- Low shut down current (100nA typical)
- 28 lead TSSOP package with exposed die pad (EDP)
- Fully WEEE package and RoHS Compliant
- Notebook computer system power
- Systems with 6.5V ~ 28V input
- Network and telecom systems
- Other portable devices
应用
封装
- TSSOP-28
订购代码
- SC2542TETRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC2542EVB: SC2542 Evaluation Board
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2542
产品描述
HIGH PERFORMANCE WIDE INPUT RANGE DUAL SYNCHRONOUS BUCK CONTROLLER
引脚数
28
封装类型
TSSOP-EP
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
