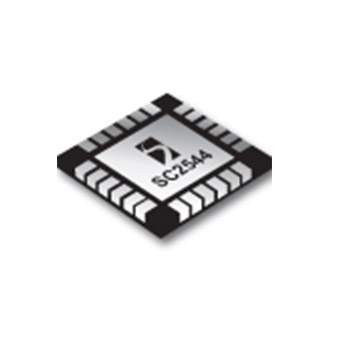

SC2544
Product inactive. Information on this page is for reference only.
The SC2544 is a high performance dual PWM controller. It is designed to convert a wide ranged input voltage down to two independent output rails. The SC2544 support “peel off ” tracking for the two outputs at start up which means the two outputs ramp up together till the one with lower output level reaching the regulation.
功能
- Independent dual-outputs
- “Peel off “start up tracking Independent dual-outputs
- Wide input voltage range: 4.5V~28V
- Adjustable output voltage down to 0.75V
- Flexible power sequencing with enable and power good output
- Synchronous Buck topology with voltage mode control
- Out of phase operation to reduce cost of input capacitor
- 10V internal regulator for gate driver to deliver high efficiency
- Programmable switching frequency: 100kHz~300kHz
- Full protection: UVLO, OVP and programmable OCP
- No need for current sense resistor
- Low shutdown current (100nA typical)
- 24 lead TSSOP and MLPQ packages
- Fully WEEE and RoHS Compliant
- Systems with 4.5V~28V input
- LCDTV and PDPTV
- Network and telecom systems
应用
封装
- TSSOP-24, MLPQ-24
订购代码
- SC2544MLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only (MLPQ-24)
- SC2544TSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only (TSSOP-24)
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2544
产品描述
HIGH PERFORMANCE WIDE INPUT RANGE DUAL SYNCH BUCK CONTROLLER
引脚数
24
封装类型
MLPQ
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
