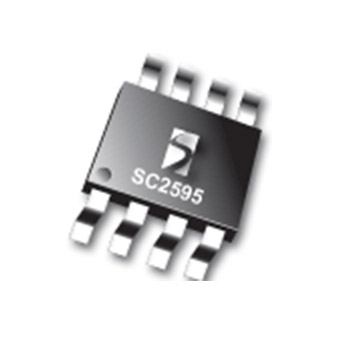

SC2595
Product is not recommended for new design.
The SC2595 is an integrated linear DDR termination device, which provides a complete solution for DDR termination designs; while meeting the JEDEC requirements of SSTL-2 specifications for DDR-SDRAM termination.
功能
- Regulates while sourcing or sinking 1.5 A
- AVCC range is from 2.5V to 5V
- Reference output
- Minimum number of external components
- Accurate internal voltage divider
- SOIC8-EDP package.Pb-free,Halogen free, and RoHS/WEEE compliant
- DDR memory termination
- High-speed data line termination
- PC motherboards
- Graphics boards
- Disk drives
- CD-ROM drives
应用
封装
- SOIC-8 EDP
订购代码
- SC2595STRT: Pb-free, Halogen free, and RoHS/WEEE compliant, 2500 pcs. Tape & Reel
- SC2595EVB: SC2595 Evaluation Board
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2595
产品描述
INTEGRATED LINEAR DDR TERMINATION REGULATOR
引脚数
8
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
