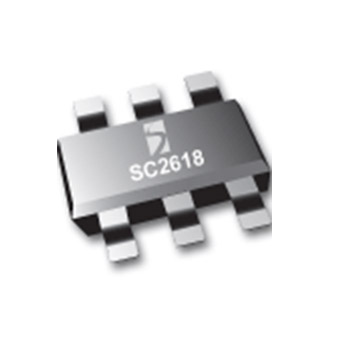

SC2618
Product inactive. Information on this page is for reference only.
The SC2618 is a hysteretic mode PWM controller designed for high efficiency, low cost “Point of Load” applications.
功能
- Operating Frequency up to 500 kHz
- Input supply from 5 V to 12 V
- 0.5 A gate drive capability
- Internal soft start
- Internal, trimmed bandgap reference (± 1%)
- Hiccup-mode short circuit protection
- Input supply sequence protection
- 6-lead SOT-23 package
- Graphics IC power supplies
- Embedded, low-cost, high-efficiency converters
应用
封装
- SOT-23-6
订购代码
- SC2618SKTRT: Lead-Free, 3000 pcs per tape and reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2618
产品描述
MINIATURE PWM CONTROLLER FOR BUCK REGULATOR
引脚数
6
封装类型
SOT-23
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
