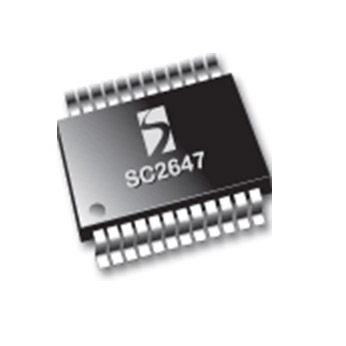

SC2647
Product inactive. Information on this page is for reference only.
The SC2647 provides microprocessor core voltage regulation solution up to 4 paralleled PWM channels. The solution can also be configured as 2, 3, or 4-phase form. Multi-phase buck regulator utilizes the phase-shift timing control to allow interleaved switching of the power switches.
功能
- VRD/VRM 10.0, VRM 9.x, and K-8 compliant
- Core voltage set point accuracy 0.5%
- Combi-Sense™ current-mode control
- Intrinsic phase current matching
- Fast transient responses
- Active droop with temperature compensation to meet load line slope
- Support VID-on-fly with 5-bit or 6-bit VID
- Enable function for power sequencing
- Cycle-by-cycle peak current limit
- Intelligent over-current shut-down
- Over-voltage protection when using Semtech Combi-Sense™ driver with the SC1211VX
- Under-voltage protection built in
- External programmable soft-start
- Externally-programmable switching frequency
- 2-phase, 3-phase, or 4-phase configurations
- 24-pin SOIC or TSSOP packages
- This device is fully WEEE and RoHS Compliant
- Voltage regulator VRD/VRM 10.x
- Voltage regulator VRM 9.x
- Voltage regulator K-8
- High-current, low-voltage step-down DC/DC converters
应用
封装
- SOIC-24
- TSSOP-24
订购代码
- SC2647SWTR: Package Minimum Tape & Reel Only (SOIC-24)
- SC2647TSTR: Package Minimum Tape & Reel Only (TSSOP-24)
- SC2647TSTRT: RoHS Compliant, Package Minimum Tape & Reel Only (TSSOP-24)
