SC2677
Product inactive. Information on this page is for reference only.

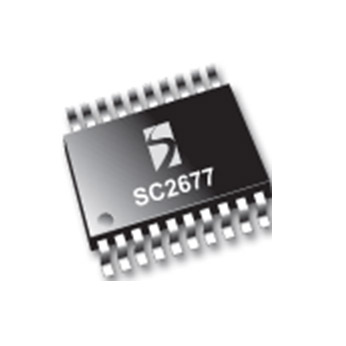

The SC2677 is a versatile 2 phase, synchronous, voltage mode PWM controller that may be used in two distinct ways. First, the SC2677 is ideal for applications where point of use output power exceeds any single input power budget. Alternatively, the SC2677 can be used as a dual switcher. The SC2677 features a temperature compensated voltage reference, an under voltage lockout over current protection and internal level-shifted, high-side drive circuitry.
功能
- 300 kHz to 1 MHz externally-programmable frequency operation
- Soft start and enable function
- Power-good output provided
- Under-voltage short-circuit protection
- Phase-shifted switchers minimize ripple
- High efficiency operation, >90%
- Programmable output(s) as low as 0.5 V
- Industrial temperature range
- TSSOP-20 package
- Bias voltage as low as 4.5 V
- Adjustable phase shift between channels
- 2-phase, current-sharing controller
- Flexible, same or separate VIN
- Programmable current sharing
- Thermal distribution via multi-phase output
- Graphics cards
- Peripheral add-in cards
- Dual-phase power supplies
- Power supplies requiring two outputs
应用
封装
- TSSOP-20
订购代码
- SC2677TSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2677
产品描述
DUAL SYNCHRONOUS VOLTAGE MODE CONTROLLER WITH CURRENT SHARING CIRCUITRY
引脚数
24
封装类型
TSSOP
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
