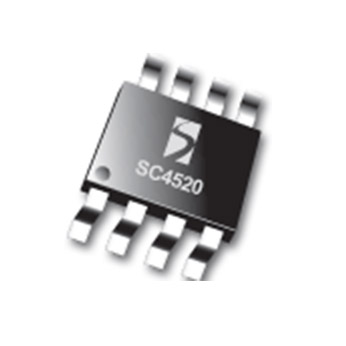

SC4520
Product inactive. Information on this page is for reference only.
The SC4520 is a current mode switching regulator with an integrated switch and an adjustable frequency with enable function. The integrated switch allows for cost effective,low power solutions with a peak switch current of 3 amps.
功能
- Wide operating voltage range: 4.4V to 24V
- Integrated 3 Amp switch
- 100kHz to 600kHz adjustable frequency operation
- Current mode control
- Precision enable threshold
- SO-8 EDP package. Lead-free product, fully WEEE and RoHS compliant
- XDSL modems
- CPE equipment
- DC-DC point of load applications
- Portable equipment
- Digtial consumer electronics
应用
封装
- SO-8 EDP
订购代码
- SC4520SETRT: Lead-free, RoHS and WEEE compliant, 2500 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4520
产品描述
3A STEP-DOWN SWITCHING REGULATOR WITH ADJUSTABLE SWITCHING FREQUENCY
引脚数
8
封装类型
SOIC EDP
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
Please consult with your Semtech Sales Rep
