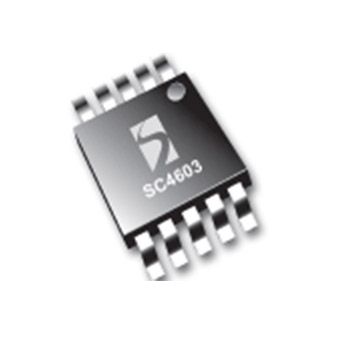

SC4603
Product inactive. Information on this page is for reference only.
The SC4603 is a voltage mode step down (buck) regulator controller that provides accurate high efficiency power conversion from input supply range 2.25V to 5.5V. A high level of integration reduces external component count and makes it suitable for low voltage applications where cost, size and efficiency are critical.
功能
- BiCMOS voltage-mode PWM controller
- 2.25 V to 5.5 V Input voltage range
- Output voltages as low as 0.5 V
- Sleep mode (Icc = 10 μA typ)
- Lossless adjustable over-current protection
- Combination pulse by pulse & hiccup mode current limit
- High-efficiency synchronous switching
- 0% to 100% duty cycle range
- Synchronization to external clock
- Asynchronous start-up
- 1 MHz frequency of operation
- 10-pin MSOP surface mount package
- Distributed power architecture
- Servers/workstations
- Local microprocessor core power supplies
- DSP and I/O power supplies
- Battery-powered applications
- Telecommunication equipment
- Data processing applications
应用
封装
- MSOP-10
订购代码
- SC4603IMSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4603
产品描述
VERY LOW INPUT, MHZ OPERATION HIGH EFFICIENCY SYNCHRONOUS BUCK
引脚数
10
封装类型
MSOP
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
