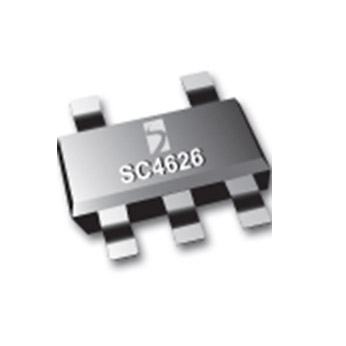

SC4626
The SC4626 is a high efficiency, synchronous step-down regulator providing up to 1A output current in a SOT23-5 package. The device requires only three external filter components for a complete step-down regulator solution.
功能
- Vin Range: 2.9 – 5.5V
- Vout Options: 1.0 - 3.3V
- Up to Output Current
- 2.5MHz Switching Frequency
- Efficiency Up to 93%
- Low Output Noise Across Load Range
- Excellent Transient Response
- Start Up into Pre-Bias Output
- 100% Duty-Cycle Low Dropout Operation
- <1μA Shutdown Current
- Internal Soft Start
- Input Under-Voltage Lockout
- Output Over-Voltage, Current Limit Protection
- Over-Temperature Protection
- SOT23-5 Package
- -40 to 85°C Temperature Range
- Fully WEEE and RoHS Compliant
- Bluetooth Radios
- DSC and PMPs
- GPS Devices
- xDSL Systems
- POL Regulators
- Portable HDD
- Wireless LAN
应用
封装
- SOT23-5
订购代码
- SC4626xSKTRT: Lead-Free, WEEE and RoHS compliant, 3000 pcs, Tape and Reel Only
- SC4626xEVB; SC4626x Evaluation Board
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4626
产品描述
2.5MHZ, 1A SYNCHRONOUS STEP DOWN REGULATOR IN SOT23-5
引脚数
5
封装类型
SOT-23
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
