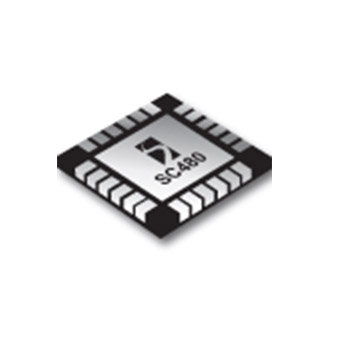

SC480
Product is not recommended for new design.
功能
- Constant on-time controller for fast dynamic response on VDDQ
- DDR1/DDR2/DDR3 compatible
- VDDQ = fi xed 1.8V or 2.5V, or adjustable from 1.5V to 3.0V
- 1% internal reference (2% system accuracy)
- Resistor programmable on-time for VDDQ
- VCCA/VDDP range = 4.5V to 5.5V
- VIN range = 2.5V to 25V
- VDDQ DC current sense using low-side RDS(ON) Sensing or external RSENSE in series with low-side FET
- Cycle-by-cycle current limit for VDDQ
- Digital soft-start for VDDQ
- Analog soft-start for VTT/REF
- Smart over-voltage VDDQ protection against source-current loads
- Combined EN and PSAVE pin for VDDQ
- Over-voltage/under-voltage fault protection
- Power good output
- Separate VCCA and VDDP supplies
- VTT/REF range = 0.75V – 1.5V
- VTT source/sink 3A peak
- Internal resistor divider for VTT/REF
- VTT is high impedance in S3
- VDDQ, VTT, REF are actively discharged in S4/S5
- 24 lead MLPQ (4x4 mm) lead-free package
- Fully WEEE and RoHS Compliant
- Notebook computers
- CPU I/O supplies
- Handheld terminals and PDAs
- LCD monitors
- Network power supplies
应用
封装
- MLPQ-24
订购代码
- SC480IMLTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4806
产品描述
MULTIPLE FUNCTION DOUBLE ENDED PWM CONTROLLER
引脚数
12
封装类型
MLPQ
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
