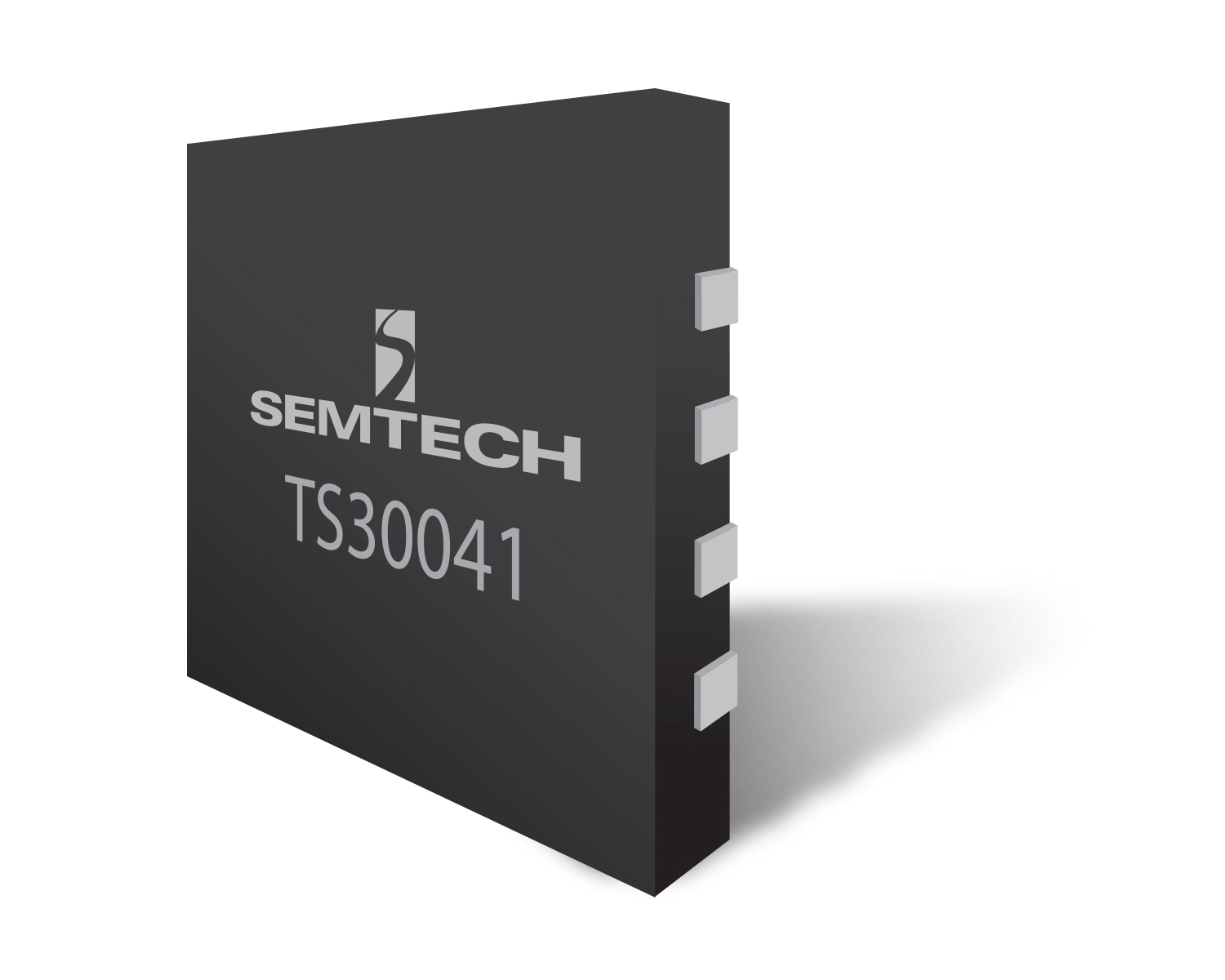

TS30041
The TS30041 (1A) and TS30042 (2A) are DC/DC synchronous switching regulators with fully integrated power switches, internal compensation, and full fault protection. The switching frequency of 1MHz enables the use of small filter components resulting in minimal board space and reduced BOM costs.
功能
- Fixed output voltage choices: 1.5V, 1.8V, 2.5V, 3.3V, and 5V with +/- 2% output tolerance
- Adjustable version output voltage range: 0.9V to (VCC - 1V) with +/- 1.5% reference
- Wide input voltage range: 4.5V to 40V (42V Abs Max)
- 1MHz +/- 10% fixed switching frequency
- Continuous output current: 1A (TS30041), 2A (TS30042)
- High efficiency up to 95%
- Current mode PWM control with PFM mode for improved light load efficiency
- Voltage supervisor for VOUT reported at the PG pin
- Input supply under voltage lockout
- Soft start for controlled startup with no overshoot
- Full protection for over-current, over-temperature, and
- UT over-voltage
- SYNC function on EN/SYNC pin to control switching frequency
- Less than 10uA in standby mode
- Low external component count
- On-card switching regulators
- Set-top box, DVD, LCD, LED supply
- Industrial power supplies
应用
封装
- Packaged in a 16 lead QFN package – 3x3mm
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
TS30041
产品描述
HIGH EFFICIENCY 1A/2A CURRENT-MODE SYNCHRONOUS BUCK CONVERTER, 1 MHZ
引脚数
16
封装类型
QFN
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
