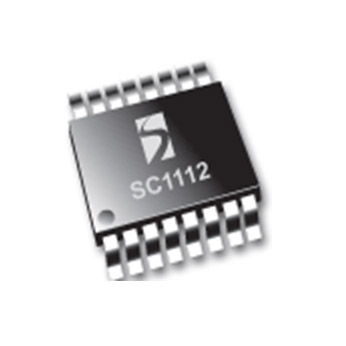

SC1112
Product is not recommended for new design.
The SC1112 was designed for the latest high speed motherboards. It includes three low dropout regulator controllers. The controllers provide the power for the system AGTL bus Termination Voltage, Chipset, and clock circuitry.
功能
- Triple linear controllers
- Selectable and adjustable output voltages
- LDOs track input voltage within 200 mV (function of the MOSFETs used) until regulation
- Integrated charge pump
- Programmable power-good delay signal
- Latched over-current protection
- SO-16 and TSSOP-16 packages
- Pentium® III motherboards
- Triple power supplies
应用
封装
- TSSOP16, SOIC16
订购代码
- SC1112ASTR: Package Minimum Tape & Reel Only
- SC1112ATSTR: Package Minimum Tape & Reel Only
- SC1112ATSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC1112STR: Package Minimum Tape & Reel Only
- SC1112STRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC1112TSTR: Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1112
产品描述
TRIPLE LOW DROPOUT REGULATOR CONTROLLERS
引脚数
16
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
Related Parts
SC1112TSTRT
