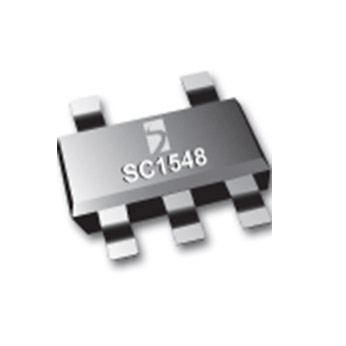

SC1548
Product inactive. Information on this page is for reference only.
The SC1548 is a power supply controller designed to provide a simple single regulated power supply with over current protection. It is part of Semtech’s SmartLDO™ family of products. The SC1548 can provide a 1.818V power supply for the I/O plane or 1.515V for GTL+ / AGP from either 3.3V or 2.5V. An adjustable option allows generation and control of any voltage from 1.263V up to 5V.
功能
- ± 2.5% output accuracy over line, load and temperature
- 1.515 V, 1.818 V, and adjustable output voltage options available
- Enable control
- Over-current protection
- 5-pin SOT-23 package
- Motherboards
- Graphics cards
- Microcontrollers
- Simple power supplies
应用
封装
- SOT23-5
订购代码
- SC1548CSK-1.5TR: Package Minimum Tape & Reel Only
- SC1548CSK-1.8TR: Package Minimum Tape & Reel Only
- SC1548CSK.TR: Package Minimum Tape & Reel Only
- SC1548CSK1.5TRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1548
产品描述
LINEAR FET CONTROLLER
引脚数
5
封装类型
SOT-23
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
