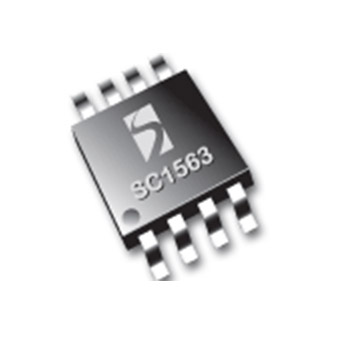

SC1563
Product inactive. Information on this page is for reference only.
功能
- 350 mV dropout @ 500 mA
- Designed to operate with ceramic capacitors
- Adjustable output from 1.2 V to 4.8 V
- Multiple output voltage options (all parts also adjustable externally using resistors)
- Over-current and over-temperature protection
- 2 µA quiescent current in shutdown
- No minimum load current requirement
- Low reverse leakage (output to input)
- Full industrial temperature range
- 5-pin SOT-23 surface mount package. Also available in Lead-free, fully WEEE and RoHS compliant
- Personal digital assistants (PDAs)
- Battery-powered systems
- Motherboards
- Peripheral cards
- PCMCIA cards
应用
封装
- MSOP-8, SOT-23-5
