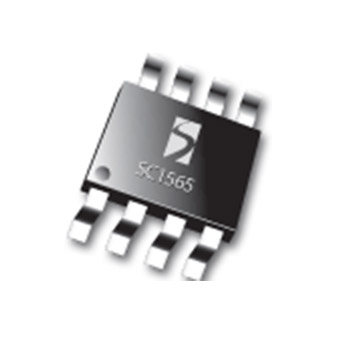

SC1565
Product is not recommended for new design.
The SC1565 is a high performance positive voltage regulator designed for use in applications requiring very low dropout voltage at up to 1.5 Amps. Since it has superior dropout characteristics compared to regular LDOs, it can be used to supply 2.5V on motherboards or 2.8V on peripheral cards from the 3.3V supply thus allowing the elimination of costly heatsinks.
功能
- 350mV dropout @ 1.5A
- Adjustable output from 1.2V to 4.8V (1)
- 2.5V and 1.8V options (adjustable externally using resistors) (1)
- Over current and over temperature protection
- Enable pin (1)
- 10µA quiescent current in shutdown (1)
- Low reverse leakage (output to input)
- Surface mount and through-hole packages
- Full industrial temperature range
- TO-220, TO-263, SOT-223 and SO-8 Packages
Note: (1) SO-8, TO-220-5 and TO-263-5 packages only.
- Battery-powered systems
- Motherboards
- Peripheral cards
- Network cards
- Set-top boxes
- Medical equipment
- Notebook Computers
应用
封装
- TO-263-5, SOIC-8, SOT-223, TO-263-3
订购代码
- SC1565I5-1.8TR: Package Minimum Tape & Reel Only
- SC1565I5-2.5TR: Package Minimum Tape & Reel Only
- SC1565I5T-2.5: $500.00 min.line Bulk (50 pcs.increments)
- SC1565IM-1.8TR: Package Minimum Tape & Reel Only
- SC1565IM-2.5TR: Package Minimum Tape & Reel Only
- SC1565IM-2.5TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- SC1565IS-1.8.TR: Package Minimum Tape & Reel Only
- SC1565IS-1.8TRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC1565IS-2.5.TR: Package Minimum Tape & Reel Only
- SC1565IS-2.5TRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC1565IST-1.8TR: Package Minimum Tape & Reel Only
- SC1565IST-2.5TR: Package Minimum Tape & Reel Only
- SC1565IST18TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- SC1565IST25TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- SC1565IT-1.8: $500.00 min.line Bulk (50 pcs.increments)
- SC1565IT-2.5: $500.00 min.line Bulk (50 pcs.increments)
- SC1565IT-2.5T: RoHS Compliant, $500.00 min.line Bulk (50 pcs.increments)
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1565IS
产品描述
VERY LOW DROPOUT 1.5 AMP REGULATOR WITH ENABLE 2.5V
引脚数
8
封装类型
TO-263
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
Datasheets & Documentation
mySemtech
探索丰富的可下载资源和数据表，帮助原型制作和生产。
正在查找文档？
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributors here.
| Part # | 国家/地区 | Qty | Buy | 经销商 |
|---|
