SC1566
Product is not recommended for new design.
The SC1566 is a high performance positive voltage regulator designed for use in applications requiring very low dropout voltage at up to 3 Amps.
功能
- 350 mV dropout @ 3 A

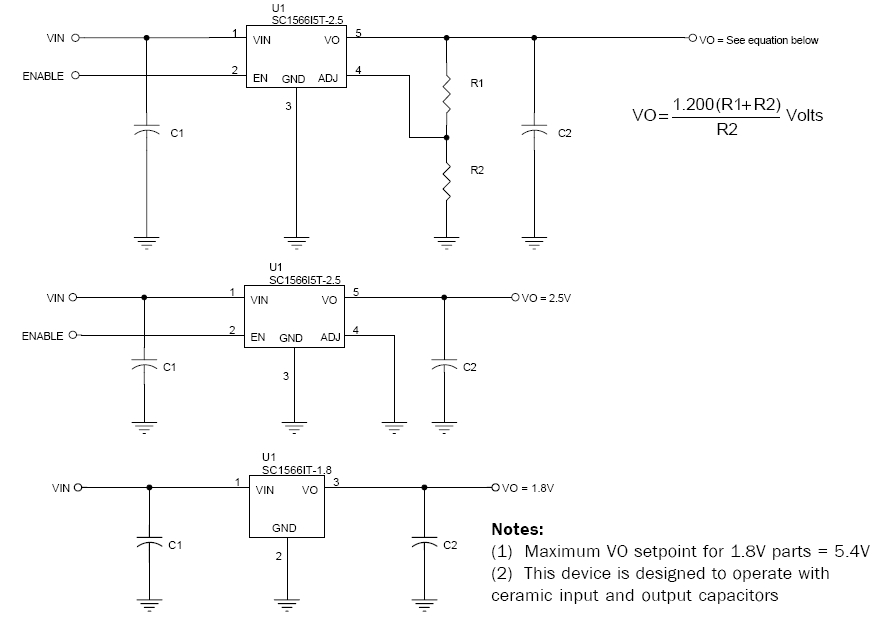

- Adjustable output from 1.2V to 4.8V
- 2.5V and 1.8V options (5 pin parts also adjustable
externally using resistors) - Over current and over temperature protection
Enable pin - 10μA quiescent current in shutdown
- Low reverse leakage (output to input)
- Full industrial temperature range
- TO-220 and TO-263 packages
- Battery-powered systems
- Motherboards
- Notebook computers
- Peripheral cards
- Network cards
- Set-top boxes
- Medical equipment
应用
封装
- TO-220-5, TO-263-3, TO-220-3, TO-263-5
订购代码
- SC1566I5M-1.8TR: Package Minimum Tape & Reel Only
- SC1566I5M-2.5TR: Package Minimum Tape & Reel Only
- SC1566I5M1.8TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- SC1566I5M2.5TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- SC1566I5T-1.8: $500.00 min.line Bulk (50 pcs.increments)
- SC1566I5T-1.8SB: Single Bend, $500.00 min.line Bulk (50 pcs.increments)
- SC1566I5T-1.8T: RoHS Compliant, $500.00 min.line Bulk (50 pcs.increments)
- SC1566I5T-2.5: $500.00 min.line Bulk (50 pcs.increments)
- SC1566I5T-2.5T: RoHS Compliant, $500.00 min.line Bulk (50 pcs.increments)
- SC1566I5T1.8SBT: RoHS Compliant, Single Bend, $500.00 min.line Bulk (50 pcs.increments)
- SC1566IM-1.8.TR: Package Minimum Tape & Reel Only
- SC1566IM-1.8TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- SC1566IM-2.5.TR: Package Minimum Tape & Reel Only
- SC1566IM-2.5TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- SC1566IT-1.8: $500.00 min.line Bulk (50 pcs.increments)
- SC1566IT-1.8T: RoHS Compliant, $500.00 min.line Bulk (50 pcs.increments)
- SC1566IT-2.5: $500.00 min.line Bulk (50 pcs.increments)
- SC1566IT-2.5T: RoHS Compliant, $500.00 min.line Bulk (50 pcs.increments)
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1566I5T
产品描述
VERY LOW DROPOUT 3 AMP REGULATOR WITH ENABLE 1.8V
引脚数
5
封装类型
TO-220
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
是
7(a)* 到期日：待定
是下载报告
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
