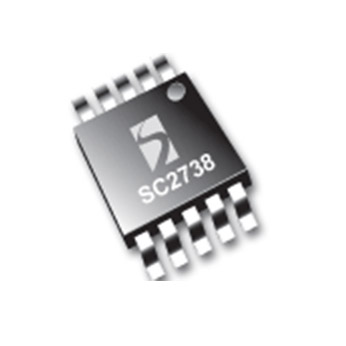

SC2738
Product is not recommended for new design.
The SC2738 is an ultra low output voltage dual power supply controller designed to simplify power management for desktop PCs and graphics cards.
功能
- ± 3.5% reference voltage
- Two independent and fully adjustable outputs
- Wide supply voltage range permits operation from 5 V or 12 V rails
- Very low quiescent current (500 µA typical with both outputs enabled and 5 V input)
- Indivdual enable control for each output
- Individual power-good monitoring and signalling for each output
- Gate drives from input supply enable use of N-channel MOSFETs
- User-selectable dropout voltage
- Individual under-voltage protection for each output
- MSOP-10 surface-mount package
- Desktop PCs
- Graphics cards
- Simple dual power supplies
应用
封装
- MSOP-10
订购代码
- SC2738IMSTR: Package Minimum Tape & Reel Only
- SC2738IMSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2738
产品描述
ULTRA LOW OUTPUT VOLTAGE DUAL LINEAR FET CONTROLLER
引脚数
10
封装类型
MSOP
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
