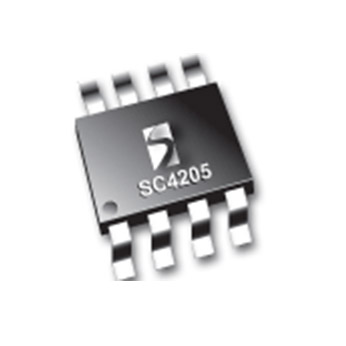

SC4205
Product is not recommended for new design.
The SC4205 is a high performance positive voltage regulator designed for use in applications requiring very
low dropout voltage at up to 1 Amp.
功能
- 350mV dropout @ 1A
- Adjustable output from 1.2V to 4.8V
- 2.5V and 1.8V options (adjustable externally using resistors)
- Over current and over temperature protection
- Enable pin
- 10µA quiescent current in shutdown
- Low reverse leakage (output to input)
- Surface mount and through-hole packages
- Full industrial temperature range
- Available in SOIC-8EDP package
- Battery-powered systems
- Motherboards
- Peripheral cards
- Network cards
- Set-top boxes
- Medical equipment
- Notebook computers
应用
封装
- SOIC-8 EDP
订购代码
- SC4205IS-1.8TR: Package Minimum Tape & Reel Only
- SC4205IS-1.8TRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC4205IS-2.5TR: Package Minimum Tape & Reel Only
- SC4205IS-2.5TRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4205
产品描述
VERY LOW DROPOUT 1.5A 1.8V REGULATOR WITH ENABLE
引脚数
8
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
