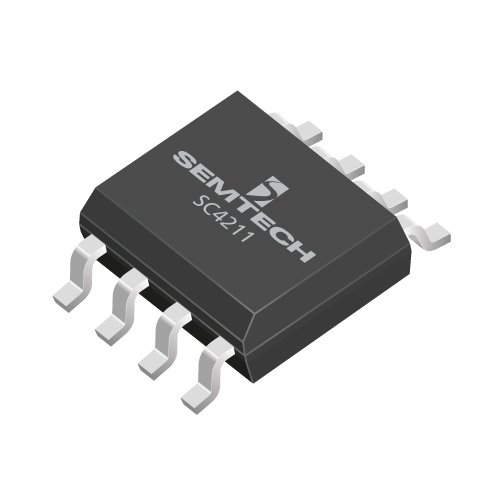

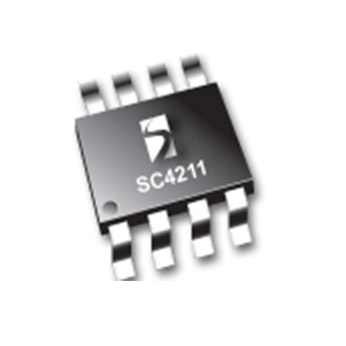

SC4211
Product is not recommended for new design.
The SC4211 is a high performance positive voltage regulator designed for use in applications requiring very low Input voltage and very low dropout voltage at up to 1 amp.
功能
- Input Voltage as low as 1.4V
- 400mV dropout @ 1A
- Adjustable output from 0.5V
- Over current and over temperature protection
- Enable pin
- 10μA quiescent current in shutdown
- Low reverse leakage (output to input)
- Full industrial temperature range
- Available in SOIC-8EDP Lead-free package, fully WEEE and RoHS compliant
- Telecom/networking cards
- Motherboards/peripheral cards
- Industrial applications
- Wireless infrastructure
- Set-top boxes
- Medical equipment
- Notebook computers
- Battery-powered systems
应用
封装
- SOIC-8 EDP
订购代码
- SC4211HSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC4211EVB: SC4211 Evaluation Board
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4211
产品描述
VERY LOW INPUT /VERY LOW DROPOUT 1 AMP REGULATOR WITH ENABLE
引脚数
8
封装类型
SOIC-8-EDP
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
