SC4216
The SC4216 is a high performance positive voltage regulator designed for use in applications requiring very low Input voltage and very low dropout voltage at up to 3 amps.
功能
- Input Voltage as low as 1.45V
- 500mV dropout @ 3A
- Adjustable output from 0.5V to 3.8V
- Over current and over temperature protection
- Enable pin
- 10µA quiescent current in shutdown
- Full industrial temperature range
- Available in 8-Pin SOIC-EDP Lead-free package. Fully WEEE and RoHS compliant
- Telecom/Networking cards
- Motherboards/Peripheral cards
- Industrial applications
- Wireless infrastructure
- Set top boxes
- Medical equipment
- Notebook computers
- Battery powered systems
应用
封装

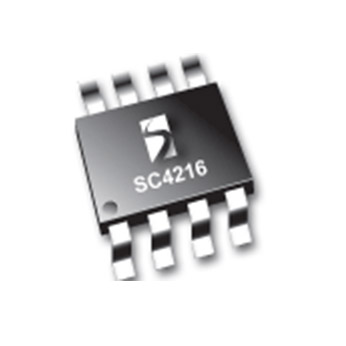

- SOIC-8EDP
订购代码
- SC4216STRT: Lead-free, RoHS and WEEE compliant, 2500 pcs. Tape & Reel
- SC4216EVB: SC4216 Evaluation Board
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4216
产品描述
VERY LOW INPUT/VERY LOW DROPOUT 3 AMP LINEAR REGULATOR WITH ENABLE
引脚数
8
封装类型
SOICEP
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
(-40°C 至 +85°C / 4000 循环)
(-40°C 至 +85°C / 4000 循环)
是
环境温度存储,锡须测试
(50°C,4000 小时)
(50°C,4000 小时)
是
60°C/90% 相对湿度 4000 小时,锡须测试
是
声明和报告
IPC-1752-2
