SC1103
Product inactive. Information on this page is for reference only.

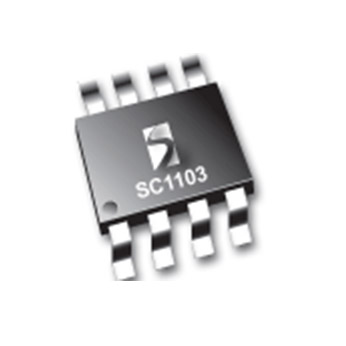

The SC1103 is a versatile, low-cost, voltage-mode PWM controller designed for 12V input DC/DC power supply applications. A simple, fixed-voltage buck regulator can be implemented using the SC1103 with a minimum of external components. Internal level shift and drive circuitry eliminates the need for an expensive p-channel, high-side switch. The small device footprint allows for compact circuit design.
功能
- Low cost / small size
- Switch mode efficiency up to 95%
- 1% reference voltage accuracy
- Over-current protection
- 500 mA output drive
- 5 V – 12 V input power source
- SO-8 package
- Pentium® P55 core supply
- Low-cost microprocessor supplies
- Peripheral card supplies
- Industrial power supplies
- High-density DC/DC conversion
应用
封装
- SOIC-8
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1103
产品描述
ASYNCHRONOUS VOLTAGE MODE PWM CONTROLLER FOR 12V INPUT
引脚数
8
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
