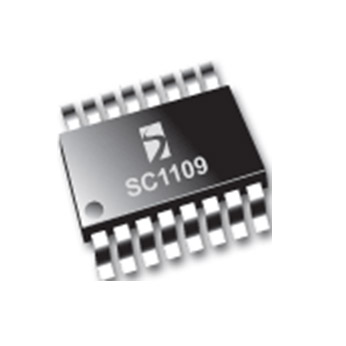

SC1109
Product is not recommended for new design.
The SC1109 was designed for the latest high speed motherboards. It combines a synchronous voltage mode controller (switching section) with two low-dropout linear regulator controllers. The voltage mode controller provides the power supply for the system AGTL bus. The Dual linear controllers power the chip set and clock circuitry.
功能
- Dual linear controllers
- LDOs track input voltage within 200 mV (function of the MOSFETs used) until regulation
- Integrated drivers
- Power-good signal (SC1109A, SC1109B)
- Soft start
- Lossless current sense
- Programmable over-current limit (SC1109C)
- Fixed frequency 200 kHz (SC1109A, SC1109C)
- Fixed frequency 500 kHz (SC1109B)
- SO-16 package
- Pentium® III Motherboards
- Triple power supplies
应用
封装
- SOIC-16
订购代码
- SC1109ACSTR: Package Minimum Tape & Reel Only
- SC1109ACSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1109
产品描述
SYNCHRONOUS PWM CONTROLLER WITH DUAL LOW-DROPOUT REGULATOR CONTROLLERS
引脚数
16
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
